Advantages and Features of TZC Cone Crusher

Advantages and Features of TZC cone crusher:
1. Oil lubrication system-air cooling
There are three methoids of cooling, by water, air and air-condition. At this moment our standard configuration is air cooling. Cooling by air-condition will cause trouble
in maintenance, so we don't recommend this way.

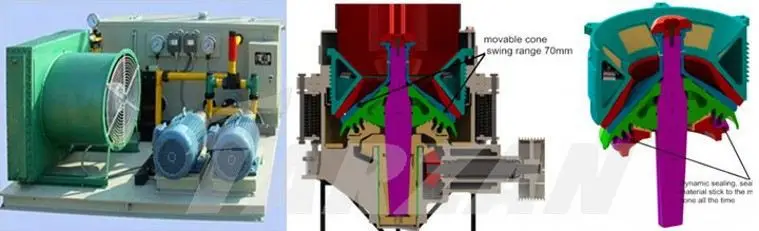

2. Bigger crushig
Movable cone swing angle reach 70mm (we are the fist supplier who can achieve this point), thus our TZC cone crusher is 30% more capacity than other cone crushers.
3. Advanced sealing device
These aling ring is sticked to the movable cone all the time when operated, so TZC cone crusher no need water or grease for sealing. By this way, the kwy parts of TZC cone crusher have 2-3 times using time compared to other cone crushers.

4. Laminated crushing, high capacity, leass wearing
Optimize the crushing cavity which guarantee the wearing part wear uniformly. By this way, the wearing parts using efficiency can achieve >75% and not affect the product result. So it can save a lot for operation cost,
5. Easy to replace the wearing part.
TZC cone crusher wearing parts and related surface are all manufactured by precise machining; and they are fixed without adhesives, easy for replacement and save time.
6. Use NSK bearing for drive shaft, longer lifetime.

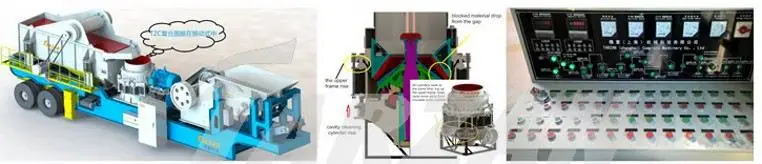

7. Hydraulic system for cavity cleaning
When cavity was blocked by material, no need to disassemble the cavity, clean the cavity by hydraulic device which save a lot of time.
8. Small vibration, TZC cone crusher can be fixed in the mobile trailer.
http://www.jawcrushertz.com
